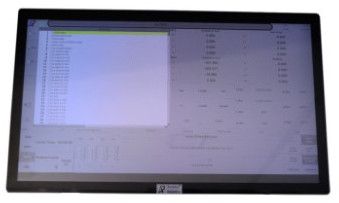

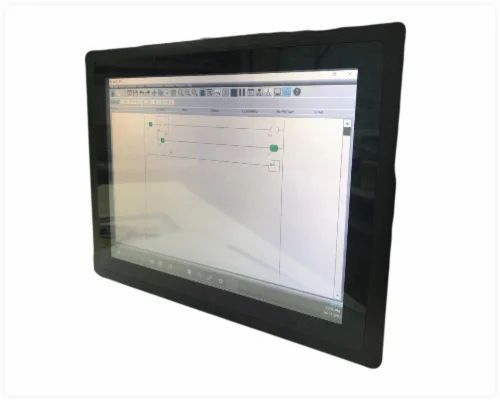

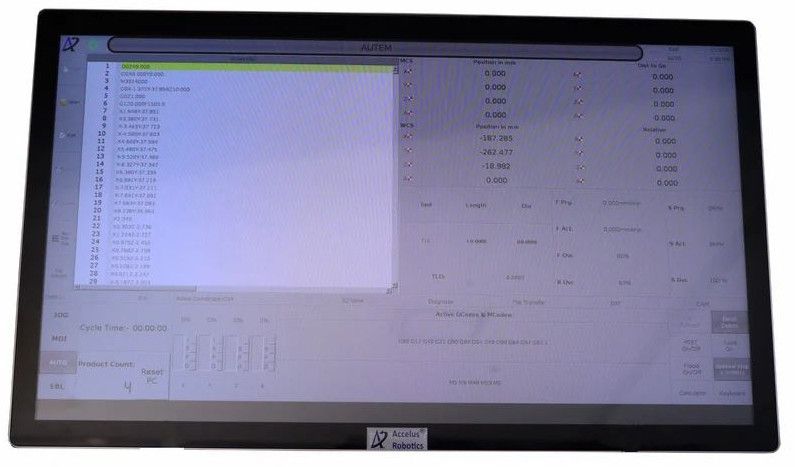

18.5 Inch Industrial Panel PCs

18.5 Inch  Industrial Panel PCs

An industrial panel PC is a computer designed for industrial use (the production of goods and services). Our PPCs come with SAW touch, which has been a favorite choice of touch technology, especially for touch monitors, ATMs, ticket machines, Industrial HMI, Retail/POS, hospitality, and public applications requiring long-term endurance. Industrial PCs are typically used for process control and/or data collection. In other circumstances, an industrial PC is merely utilized as a front-end to another control computer in a distributed processing environment. built to withstand the rigors of an industrial setting, making them resistant to damage from heat, cold, shock, and vibration. The usable temperature range is between -20 and 60 degrees Celsius. Panel PCs enable workers from factory managers to surgeons with an easier approach for obtaining data, analyzing conditions, and maximizing results as factories, hospitals, and other workplaces become increasingly linked and digital.

TFT Display with IP65 rating (only front side protection) and touch display with 7H-hard glass. Supports multi touch with gestures supports (depends on operating systems). One-layer tempered glass used in the SAW Touch sensor provides exceptional optical clarity and high-quality touch sensitivity; glass thickness may be adjusted to boost the touch screen’s resistance to impact and make it a vandal-proof option for industrial use. All IPCs comes with high quality Aluminum frames and metal body with shockproof coating. IPCs also supports multiple display ports HDMI, VGA or Display port. We provide various sizes 10.1 inch (1280 x 800 pixels), 12.1 inch (1024 x 768 pixels), 15 inch (1024 x 768 pixels), 18.5 inch (1920 x 1080 pixels) and 21 inch (1920 x 1080 pixels) touch display in our Industrial panel computer with viewing angel 89°/89°.

We also provide fan-less PC with intel Celeron J1900 Quad core 2 GHz however there also option of i3, i5 and i7 with DDR4 ram it provides an excellent customer experience, and a long-lasting life expectancy for future development.

Networking Our IPCs come with dual gigabit Ethernet slots of RJ45. Wireless For wireless there is option to use IEEE 802.11ac mini-PCI Wi-Fi card or IEEE 802.11n USB Wi-Fi card, we do not provide Wi-Fi functionality on the motherboard. Our IPCs also comes with 2x serial ports.

3G/4G LTE modem we also provide connectivity with LTE modem is in a series of LTE category 4 modules adopting standard PCI Express® Mini Card form factor (Mini PCI-E). It is optimized specially for M2M and IoT applications, and delivers up to 150Mbps

Storage for storage IPCs support mSATA (Up to 550 MB/s Read, 520 MB/s Write) up to 1 TB storage, M.2 SSD (Up to 1100 MB/s Read, 950 MB/s Write) and 2x SATA 2.0

Power Works with 12V 3 pin power supply or 12V power adaptor. User has option if they want power button or not, All IPC with no power button are configured to AutoStart after plug DC supply

Operating system users have freedom to use any operating system like Microsoft Windows, Linux, BSD however we also provide windows 10 IOT Enterprise OS with license.
